FMD100 Slow speed Dual shaft Cross Crushing medical waste shredder

Minimum order quantity: 1 pieces
Wooden case packing
Delivery time: 30 days
0086 18878728612TEL

Product Description

Medical waste  shredder

Model:FMD100

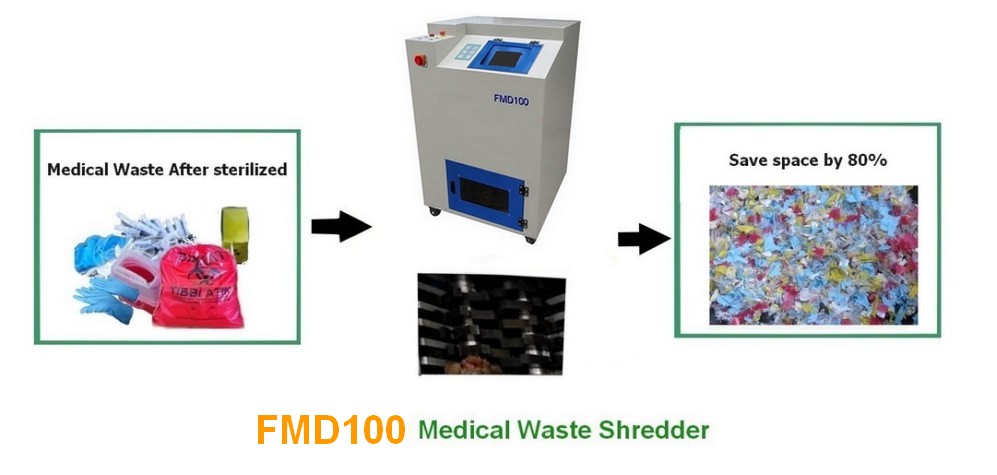

This machine is designed to destroy the used medical plastic waste into small pieces so that to

reduce the risk of reuse and help to reduce the waste volume of transporatation by 80%.

无标题 4.jpg

It can be used for shredding widely range of medical waste such as plastic utensils, syringes, test tubes,

ELISA plate, dish, dilution cup,straw, tip, urine cup, pill bottle and medical used needle, small glass

bottles and so on.




Features:

1. Safety protection

   Electric Leakage protection, Over voltage and over current protection; Interface safety voltage;

   Emergency stop function; With earthing conductor;

2. Professional Cutter design

  We will help to design the proper number and the length of hooks for cutters according to

  various kinds of materials so that to maximize throughput of the requirement shred size.

3.Low speed technology

  with low speed technology and it is availble for efficiently process bulk fed as well as less  noise and

  dust emission.

4.With UV disinfection

   With the UV and Ozone disinfection lamp and can kill the virus where the UV lamp light reach.

5. Automatic shaft reverse function

  This function will help to protect the shredding system against damage when there is a jam or over feeding.

6. Super low noise

   Its working noise is only about 60-70dBa, and it is more suitable for hospital use and long use.


Parameter:


Destroying method

Electric Double shaft cutting

Product size

860*860*1350mm

Crushing capacity

100-120kg/hour

Power supply

110V/220V-240V,50/60Hz, single phase power supply

Internal protection

overload protection, leakage protection


Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

3000VA

Material of shell

Mild steel powder coated

Temperature

in operation: -5°C~+50°C ; stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

1pc of Waste collector

Number of knife

18pcs of rotating blade,18pcs of fixed blade.

Motor with reducer

Quiet and low speed motor

Rpm

30r/min

Low noise

60 - 70 dB (A)

Operation Panel

“START” “STOP” “EMERGENCY STOP”

“POWER LIGHT” “POWER SWITCH”.

“DISINFECTION” for UV and Ozone disinfection.
